Motion MCW with MediaWave Computer – Installation and Assembly Procedure

4 Document No. 002-15-0010

Motion Proprietary & Confidential

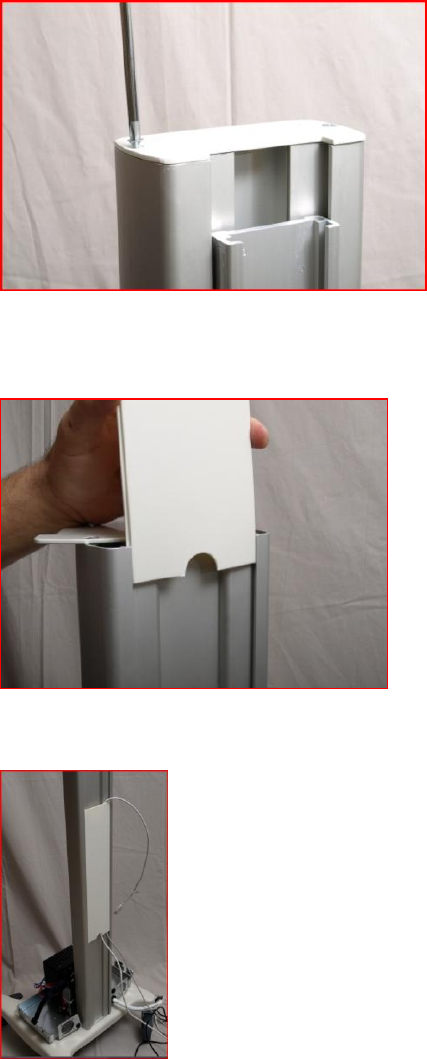

2.5 Remove one screw and loosen the other screw of the column top plate

2.6 Insert decorative cover in the back of the column channel groves.

Note: Notice the half moon on the first decorative cover

2.7 Slide decorative cover down to within 24 inches of the base
